For

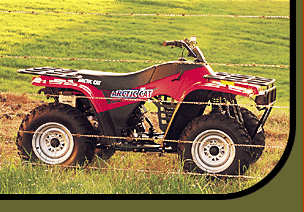

a "smaller" ATV, this machine is big on features. In fact, it offers you
more than any other in its class. Like fully independent double A-arm suspension,
front and rear, that creates best-in-class 6.5 in. (16.5 cm) of travel.
Plus a dependable air- and oil-cooled four-stroke engine. Exclusive single-lever
braking control and front and rear hydraulic disc brakes. A 4.25-gal. (16 liter) gas tank to get you farther between fill ups. And full floorboards. |
| [Engine
Displacement/Type] |
 |
|
246cc,
Air- and Oil-cooled, 4-stroke, 2-valve overhead cam with manual compression
release
|
| [Dry
Weight] |
|
|
545
lbs. (248 kg)
|
| [Ground
Clearance] |
|
|
8.25"
(21 cm)
|
| [Overall
Height] |
|
|
45"
(114.3 cm)
|
| [Overall
Width] |
|
|
45"
(114.3 cm)
|
| [Overall
Length] |
|
|
79.5"
(201.8 cm)
|
| [Tire
Sizes] |
|
|
Front:
23x8-12 (5.0 psi)
Rear:
24x9-12 (5.0 psi)
|
| [Suspension
Type] |
|
|
Front:
Double A-arm
Rear:
Double A-arm
|
| [Suspension
Travel] |
|
|
Front:
6.5" (16.5 cm)
Rear:
6.5" (16.5 cm)
|
| [Transmission] |
|
|
5-speed,
constant mesh, 1 reverse, hi-low range
|
| [Drive
Train] |
|
|
Front:
N/A
Rear:
Enclosed Gear
|
| [Brake
System] |
|
|
Front:
Hydraulic disc
Rear:
Hydraulic & mechanical disc
|
| [Fuel
Capacity] |
|
|
4.25
gallons (16 liters)
|
| [Alternator
Output] |
|
|
220
watts at 5,000 rpm
|
| [Rack
Capacity] |
|
|
Front:
75 lbs. (34 kg)
Rear:
150 lbs. (68 kg)
|
| [Towing
Capacity] |
|
|
950
lbs. (432 kg)
|
| [Instrumentation] |
|
|
Optional:
Gas gauge, speedometer, gear indicator lights
|
|
 |
|
