| ATTENTION WUSSIES:
STOP READING IMMEDIATELY.

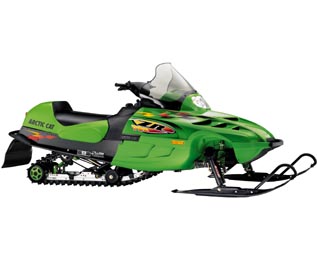

An Arctic Cat® ZR® is not for the fainthearted. The cutting-edge bodywork should be your first clue. There's also new Arctic Cat gas shocks for improved handling, a 13-gal. fuel tank for more range, a race-legal 43-in. ski stance for extra suspension travel, and a kinder, gentler saddle (these are sleds for butt kickers, not butt kick-ees). Our AWSTM V front suspension and FasTrack® Long-Travel Rear Suspension System with Torque Sensing LinkTM (TSL) and Extra Travel Tunnel (ETTTM) round out the equipment.
|
|
| ZR
700 / ZR 600 EFI / ZR 600
ZR 500 EFI / ZR 500 |
|
| Displacement (cc), Cooling, Cylinders: | 700, liquid, twin (700) / 599, liquid, twin (600's) / 497, liquid, twin (500's) |
| Est. Horsepower | 115 (700) / 105 (600 EFI) / 108 (600) / 96 (500's) |
| Lubrication | oil injection |
| Ignition | 3D (700 & 600's) / CDI (500) |
| Carburetion | 2 x TM 40 (700) / throttle body batteryless EFI (600 EFI, 500 EFI) / 2 x TM 38 (600) / 2 x VM 38 (500) |
| Exhaust | tuned pipe |
| Drive | Arctic (rpm sensing) |
| Driven Clutch | Arctic (roller cam) |
| Ski Stance (inches) | 43 |
| Ski Material | plastic |
| Front Suspension | AWS V double-wishbone A-arms with Arctic Cat shocks and adjustable rate springs |
| Front Travel (inches) | 9.4 |
| Rear Suspension | FasTrack Long-Travel System slide-rail, adjustable torsion springs, Arctic Cat shocks, Torque Sensing Link rear arm |
| Rear Travel (inches) | 13.5 |
| Track Width x Length x Lug (inches) | 15 x 121 x .85 |
| Brakes | Hydraulic disc |
| Fuel Capacity (gallons) | 13 |
| Length x Width (inches) | 112 x 46 |
| Est. Dry Weight (pounds) | 499 (700) / 483 (600's, 500's) |
| Headlight | halogen (3-bulb) |
| Standard Equipment | tachometer, speedometer, trip odometer, low oil light, coolant overheat light, spark plug holder, belt holder |
| Optional Equipment | reverse, mirrors, mountain strap, high windshield, tether switch, 2-passenger seat with backrest, rack, hitch, accessory outlet, Mountain Cat kit |
